Jura Luna

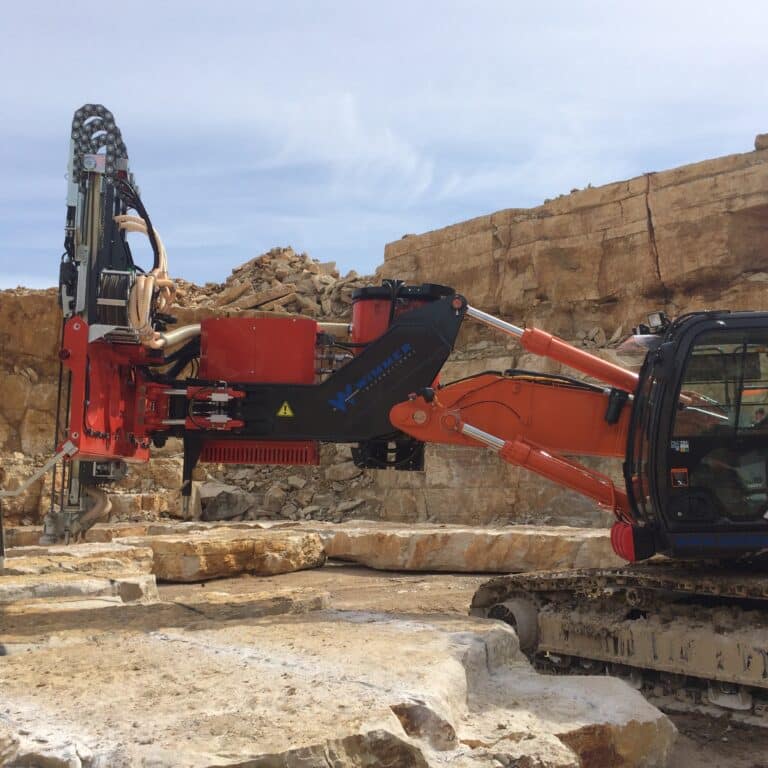

Special line boring rigs for vertical line boring
- 90° laterally swiveling, option 2 x 30° rotatable
- For vertical row drilling
- Radio remote control, all functions proportionally controlled (excavator optional)
- Automatic empty hammer, cavity safety device, anti-fixed drilling device and soft tapping as standard
- Options: PLC drilling automation and PLC remote maintenance (Drillmatic)
- Complete solutions incl. compressor and dust extraction incl. excavator superstructure
- Wimmer Cockpit Drilling Data Analysis
More about drilling technology
Data sheetsTechnical data
Luna 1.100
Hammer drill / max. ø, mm
1 x HEX1 / 41
Useful bore depth, mm
1900
Useful bore width, mm
3500
Luna 1.200
Hammer drill / max. ø, mm
1 x HB5A / 55 mm
Useful bore depth, mm
1900
Useful bore width, mm
3500
Luna 2.100
Hammer drill / max. ø, mm
2 x Hex 1 / 41 mm
Useful bore depth, mm
1900
Useful bore width, mm
3500
Luna 3.100
Hammer drill / max. ø, mm
3 x HEX 1 / 41 mm
Useful bore depth, mm
1900
Useful bore width, mm
3500
